PE Double Wall Corrugated Pipe Extrusion Machine Production Line

Name: PE Double Wall Corrugated Pipe Extrusion Machine Production Line
Brand: WINGS
Price: 15000 USD

China PE Double Wall Corrugated Pipe Extrusion Machine Production Line wholesale

Brand Name : WINGS

Model Number : SJ

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 set

Price : USD 15000-30000 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case, container

Condition : New

Screw Material : 38CrMoAlA

Screw L/D Ratio : 33:1

Screw Design : Single-screw

Inverter : Delta Brand

Contactor : Siemens Contactor

Output : 200 - 250 Kg/h

Raw material : PP PE pvc hdpe

Core Components : Bearing, PLC

Final product : high speed single wall corrugated pipe

Contact Now

PE Double Wall Corrugated Pipe Extrusion Machine Production Line

Product Advantage.

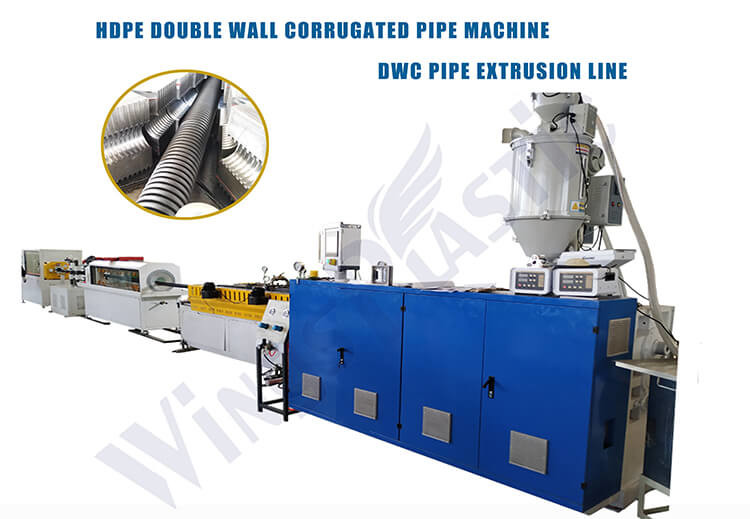

Whole line consists of Single Screw Extruder, Mould, Forming Machine(With Corrugated Forming Pairs), Auto-Tension Controller, and Winder Unit. It adopts gear transmission module and cooling water circulation for cooling, which production speed can be up to 10-15m/min, and the pipe with characteristics of one-step forming, uniform shape of the ripples, consistent joint, smooth inside and outside pipe wall.

Structure design of special screw and mould is reasonable, replacement of mould is convenient and reliable, and the problem of easy wear of screw barrel and difficult forming of material is solved. The production line has fast and stable speed, easy to operate.

PE Double Wall Corrugated Pipe Extrusion Machine Production Line

Applications
Plastic hookah/shisha hose making machine
Application: Shisha pipe/hook pipe, electric pipe etc, water drain pipe etc.
Raw material: PVC granule, PE/PP granule, PA granule.
Diameter: 10-55 mm
Capacity: 20-50 kg/h
Model: Normal speed and high speed

PE Double Wall Corrugated Pipe Extrusion Machine Production Line

Product Tags:

PE Corrugated Pipe Machine

PLC Corrugated Pipe Production Line

PE Double Wall Corrugated Pipe Extrusion Machine Production Line Images
